The Regional Control Processor is used to connect together up to 10 sites to form a regional coverage network. The RCP performs all the Inter-site call set-up management tasks, including PSTN, PABX's and hardwired dispatchers (MHD).
The (SSIU) is a low cost cut down version of the RCP and allows connection of a site to the PSTN or PABX. Ports to attach an MHD and the system control terminal are included. Message Handling Dispatcher
The Message handling dispatcher operates as fixed dispatcher terminal for an entire region.
An external audio unit is also required to route the audio to the operators headset.
The terminal operates a stacking system, that displays call requests as they are propagated through the network. Calls of a higher importance are displayed using different colours. The operator may initiate calls based on the request stack or a selected radio unit. Any status or short data message calls will be displayed on the terminal as a text message.
Each region provides a connection point for one dispatcher terminal.
The use of an MHD Concentrator will allow 16 terminals to be connected to a single port without any impact on performance.
Inter-Regional Processor
The Inter-Regional Processor is used to connect up to 16 regions to form very large networks.
Communication with each regions Regional Control Processor can be at either 9600 or 19200 Baud.
The Inter-Regional processor is based upon an industrial PC platform. A silicon ram disk replaces the hard disk to ensure high reliability + very high speed.

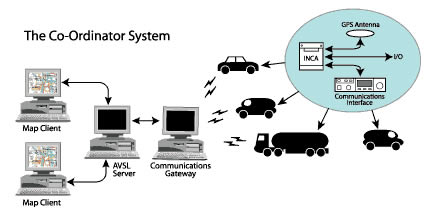

AUTOMATIC VEHICLE LOCATION:
Sophisticated GPS circuitry interfacing with multiple carriers handling transmission over MPT 1327. PMR and Packet Data can provide on demand monitoring of vehicle location, movement, distance, time, speed and vehicle switch conditions e.g. hazard lights and ignition position. Combining INCA with Co-ordinator creates the most comprehensive asset location and tracking solution available.
REPEATERS:

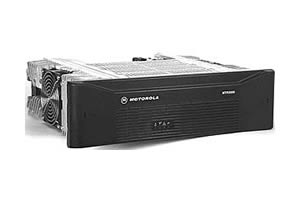

MTR2000
· 12.5 / 25 / 30 kHz switchable channel spacing
· Compact and lightweight
· Field programmable
· Continuous duty cycle operation
· Software based design
MPT1327 RADIOS:
Radios available from a wide range of manufacturers. Over 10 manufacturers produce portables and mobiles to support all the features of the MPT1327 Trunking protocol. MPT Trunking Radio manufacturers.

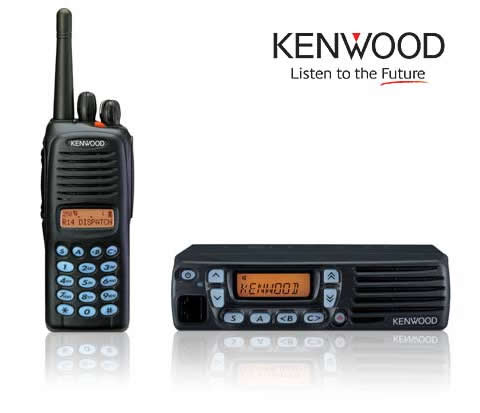

• Hi-Spec. UHF/VHF FM Portable Radio.
• VHF 136-147 MHz - UHF 400-470 MHz.
• 5 Watts RF Output.
• GPS Lapel Microphone (Works with AVL)
• LCD Display and Keypad.
• 12-character Alphanumeric Dot Matrix Display.
• Built-In Voice Scrambler.
• Lone Worker Function for Extra Security.
• Meets/Exceeds MIL-STD Blowing Rain & IP54/55.
PDF - Kenwood TK2180/3180 Brochure
PDF - Kenwood TK2180/3180 User Manual
Speaker Microphone with Integral GPS Unit |
Tri-chemistry Rapid Charger |
Batteries Ni-Cad - 1700mAh / Ni-MH - 2500mAh / Li-Ion - 1700mAh |
Three-wire lapel mic with earpiece |
Heavy Duty Speaker/Microphoner |
Pre-Formed Antenna's For all the selected Trunk Bands |
• Hi-Spec. UHF/VHF FM Mobile Radio.
• VHF - 136-174 MHz - UHF - 400-470 MHz.
• 1 - 25 Watt RF Output.
• GPS - Compatible.
• LCD Display.
• 12-character Alphanumeric Dot Matrix Display.
• Built in speaker.
• Keypad Microphone Options.
• Rugged construction.
Kenwood TK7180/8180 Brochure
Kenwood TK7180/8180 User Manual
